Event Type

The “Event Type” dialog allows you to select an event on one or more slave axes. An event is a programmable condition, which once set, is monitored for occurrence.

The “Event Type” dialog may be opened from:

Events dialog:

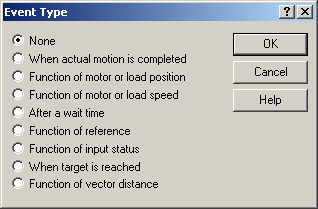

                                       Event Type – called from Events dialog

EventTypeFromDialogueMC

One of the following motion dialogs Trapezoidal Profiles, S-curve Profiles, External, Test:

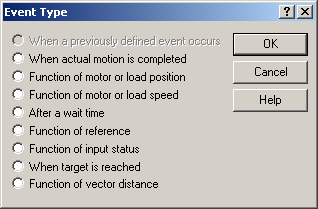

                                       Event Type – called from a motion dialog

EventTypeFromMotionMC

The events are grouped into 9 categories:

None – appears when the dialogue is opened from the “Events” dialogue. Check this item if you have already defined an event and now you want to: a) program a stop when the event occurs and/or b) program a time out condition.

Remark: The When a previously defined event occurs option is active only for TML applications developed for intelligent drives/motor.

When actual motion is completed – for programming the event:  when the actual motion is completed on one or more slave axes.

Function of motor or load position – for programming the events: when the absolute or relative motor or load position of a slave axis is equal or over/under a value or the value of a variable.

Function of motor or load speed – for programming the events: when the motor or load speed of a slave axis is equal or over/under a value or the value of a variable.

After a wait time – for programming a time delay, using a time event. The monitored event is: when the relative time of the motion controller is equal with a value or the value of a variable.

Remark: The event on time can be programmed only for the motion controller.

Function of reference – for programming the events: when the position or speed or torque reference of a slave axis is equal or over/under a value or the value of a variable.

Function of inputs status – for programming the events: when capture inputs or limit switch inputs or general purpose inputs from a slave axis change status: low to high or high to low.

When target is reached – for programming the events: when the reference generator from one or more slaves completes the trajectory.

Function of vector distance – for programming the events: when the vector distance is equal or over/under a value or the value of a variable.



OK: Close this dialogue and save selected event

Cancel: Close this dialogue without saving the selected event

Help: Open this help page.
