This dialogue allows you to program an event on a slave axis function of the motor or load position. The events can be: when the absolute or relative motor or load position is equal or over/under a value or the value of a variable
The absolute load or motor position is the measured position of the load or motor. The relative position is the load displacement from the beginning of the actual movement. For example if a position profile was started with the absolute load position 50 revolutions, when the absolute load position reaches 60 revolutions, the relative motor position is 10 revolutions.

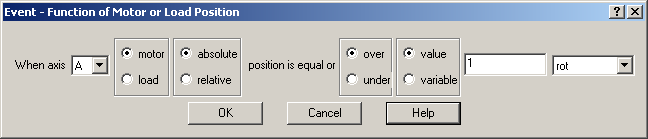

Select the slave axis, the position to monitor: motor or load, its type: absolute or relative, the event condition: over (or equal) or under (or equal) and the comparison data: a value or the value of a variable.
OK: Close this dialogue and save the event set
Cancel: Close this dialogue without saving the event set.
Help: Open this help page.
