Event - Function of Reference

This dialogue allows you to program an event on a slave axis function of the position reference.

Remark: Setting an event based on the position reference is particularly useful for open loop operation where feedback position and speed is not available.

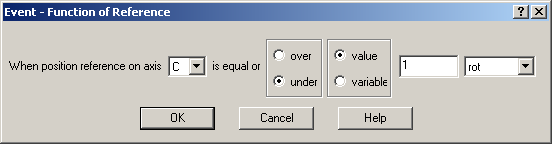

EventFunctionReferenceMC

Select the slave axis, the event condition: over (or equal) or under (or equal) and the comparison data: a value or the value of a variable.

OK: Close this dialogue and save the event set

Cancel: Close this dialogue without saving the event set.

Help: Open this help page.
