Event - Function of Motor or Load Speed

This dialog allows you to program an event on a slave axis function of the motor or load speed. The events can be: when the motor or load speed is equal or over/under a value or the value of a variable.

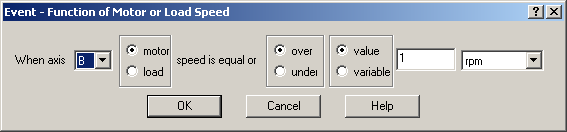

EventFunctionMotorLoadSpeedMC



Select the slave axis, the speed to monitor: motor or load, the event condition: over (or equal) or under (or equal) and the comparison data: a value or the value of a variable.

OK: Close this dialogue and save the event set

Cancel: Close this dialogue without saving the event set.

Help: Open this help page.
