Motion Position Triggers

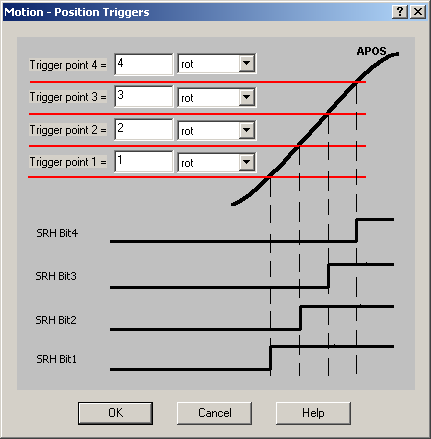

The “Motion - Position Triggers” dialogue allows you to define 4 position trigger points. A position trigger is a position value with which the actual position is continuously compared. The compare result is shown in the Status Register High (SRH). If the actual position is below a position trigger, the corresponding bit from SRH is set to 0, else it is set to 1. You can change at any moment the value of a position trigger.

motionpositiontriggers

The actual position that is compared with the position triggers is:

The Load position feedback (TML variable APOS_LD) for configurations with position sensor
The position reference (TML variable TPOS – Target position) in the case of steppers controlled in open-loop

Remark: The position triggers can be used to monitor the motion progress. If this operation is done from a host, you may program the drive/motor to automatically issue a message towards the host, each time when the status of a position trigger is changed.
