Logger - Start / Upload Data / Stop Data Upload

Start the logger

Use the Logger | Start menu command (or the associated toolbar icon ) to start a data acquisition for the selected variables. Data is saved in the drive/motor RAM memory. In EasyMotion Studio, if the logger window is opened, the data acquisition is started automatically when you press the Run button.

Each time when you execute a Logger | Start command, the data acquisition is restarted and will overwrite the previously stored data. Once the buffer is full, the data storage process is stopped.

Upload Data

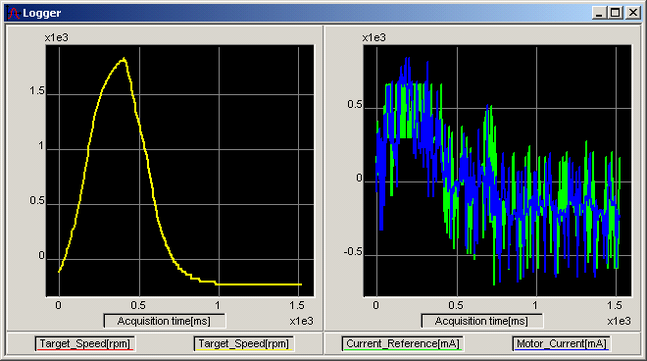

Use the Logger | Upload Data menu command (or the associated toolbar icon ) to get the data from the drive/motor memory and display them in the logger window.

Stop Data Upload

Use the Logger | Stop Data Upload menu command (or the associated toolbar icon ) to stop the logged data uploading process





See also:

Data Logger Utility
