WMSO                Set event when slave’s motor speed is equal or over a 32-bit value or the value of a fixed variable

Syntax

WMSO (Slave), value32

Wait for slave’s Motor Speed Over value32

WMSO (Slave), VAR32

Wait for slave’s Motor Speed Over VAR32



OperandsSlave: slave axis monitored for event occurrence

VAR32: fixed variable

value32: 32-bit fixed immediate value

PlaceTMLOnline

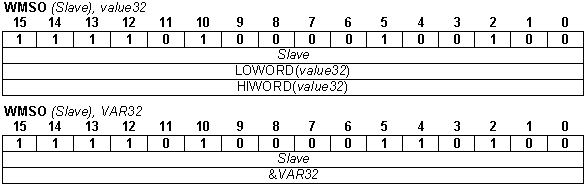

Binary code

WMSO

DescriptionSets the event condition and halts the execution of the TML program from motion controller until when the motor speed is equal or over the 32-bit value or the value of the specified fixed variable. After you have programmed an event, you can do the following actions:
•Change the motion mode and/or the parameters when the event occurs, with command UPD!
•Stop the motion when the event occurs, with command STOP.

The programmed event is automatically erased when the event occurs or if the timeout for the wait expires.



ExecutionActivates the monitoring of the event on the slave axis, when motor speed >= value32, respectively VAR32. The motion controller application remains in a loop until the event on the slave axis occurs or it timeouts. This operation erases a previous programmed event that has occurred.



Example

//Motor is accelerating. Stop motion on all axes when motor

//speed > 600 rpm

//Position feedback: 500 lines encoder (2000 counts/rev)

WMSO (D) 20; //Set event: when motor speed is > 600 rpm

STOP;//Stop the motion when the event occurs
