!TRO                Set event when the torque reference is equal or over a 32-bit value or the value of a fixed variable

Syntax

!TRO value32

! if TorqueReferenceOver value32

!TRO VAR32

! if TorqueReferenceOver VAR32



OperandsVAR32: fixed variable

value32: 32-bit fixed immediate value

PlaceTMLOnline

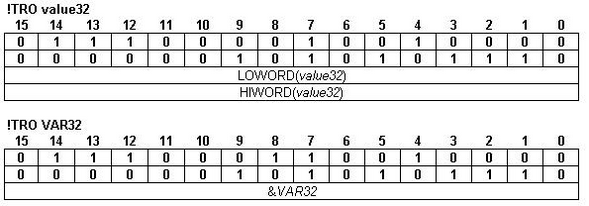

Binary code

DescriptionSets the event condition when the current/torque reference is equal or over the specified value or the value of the specified variable. After you have programmed an event, you can do the following actions:
•Change the motion mode and/or the parameters when the event occurs, with command UPD!
•Stop the motion when the event occurs, with command STOP!
•Wait for the programmed event to occur, with command WAIT!

The programmed event is automatically erased when the event occurs or if the timeout for the WAIT! command expires.

Remark: After setting UPD! or STOP! you need to wait until the programmed event occurs using WAIT!, otherwise, the program will continue with the next instructions that may override the event monitoring.



ExecutionActivates the monitoring of the event, when current/torque reference >= value32, respectively VAR32. This operation erases a previous programmed event that has occurred.



Example:

// Motor will reach a hard stop. Disable control when torque

// reference > 1 A = 1984 internal current units

!TRO 1984.0; // set event when torque reference > 1 A

WAIT!;//Wait until the event occurs

AXISOFF; // disable control
