SRL – Status Register Low part (status, RO)

Purpose: SRL is the low part of a status register grouping together all the key status information concerning the drive/motor

TML Address: 0x090E

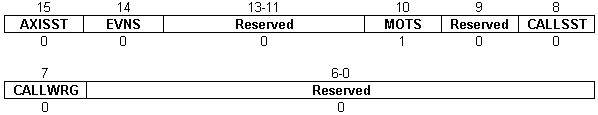

Contents. SRL information is structured as follows:

SRL

Bit 15 AXISST. Axis status

0 =

Axis Off

1 =

Axis On

Bit 14 EVNS. Events

0 =

No event set, or programmed event not occurred yet

1 =

Last programmed event reached

Bits 13-11 Reserved.

Bit 10 MOTS. Motion status

0 =

In motion

1 =

Motion complete

Bit 9 Reserved.

Bit 8 CALLSST. Cancelable call status

0 =

No function in execution following a cancelable call

1 =

A function in execution following a cancelable call

Bit 7 CALLWRG. Cancelable call warning

0 =

No warning

1 =

Warning – a cancelable call is issued while another cancelable function is in execution

Bits 6-0 Reserved



See also:

Status register high part – SRH
