=                Assign a 16-bit value to a TML variable or a memory location from another axis or group of axes

Syntax

[Axis/Group] VAR16D = VAR16S

[A/G] VAR16D = local VAR16S

[Axis/Group] VAR16D,dm = VAR16S

[A/G] VAR16D, dm = local VAR16S

[Axis/Group] (VAR16D), TypeMem = VAR16S

[A/G] &(VAR16D), TM = local VAR16S

[Axis/Group] (VAR16D+), TypeMem = VAR16S

[A/G] &(VAR16D), TM = local VAR16S, then V16D+=1



Operands        VAR16x: integer variable VAR16x

Axis/Group:

An integer 1 to 255 representing an Axis ID
G followed by an integer 1 to 8 representing one of the 8 groups
B for a broadcast to all axes

dm: data memory operand

TypeMem: memory operand. One of dm (0x1), pm (0x0) or spi (0x2) values

(VAR16x): contents of variable VAR16x, representing a 16-bit address of a variable

PlaceTMLOnline

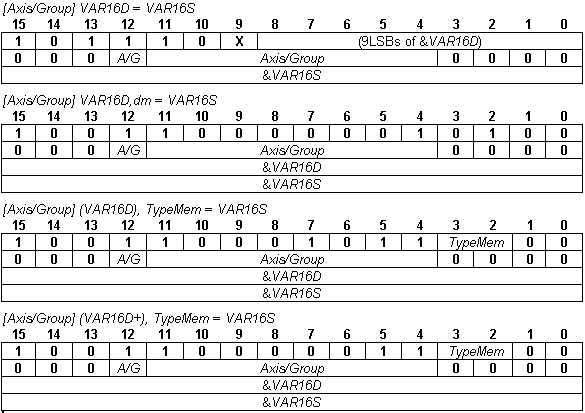

Binary code

ASSIG_16_MAXIS_SEND

DescriptionSends the value of a 16-bit local TML variable to another axis or group of axes. The remote destination can be a 16-bit TML variable or a memory location whose address is indicated by a 16-bit TML variable (a pointer) from the remote axis/axes. If the pointer variable is followed by a + sign, after the assignment, it is incremented by 1. In the binary code, Axis/Group represents either an Axis ID (if A/G=0) or a Group ID (if A/G = 1). A transmission with Group ID can be:
For all the axes from a single group, if one bit from the 8-bit Group ID is 1
A broadcast to all the axes, if the Group ID = 0

Remark: If the TML variables from the remote axis are user variables, these must be declared in the local axis too. Moreover, for correct operation, these variables must have the same address in both axes, which means that they must be declared on each axis on the same position. Typically, when working with data transfers between axes, it is advisable to establish a block of user variables that may be the source, destination or pointer of data transfers, and to declare these data on all the axes as the first user variables. This way you can be sure that these variables have the same address on all the axes.

The memory location can be of 3 types: RAM for data (dm), RAM for TML programs (pm), EEPROM SPI-connected for TML programs (spi).

TypeMem

One instruction uses a 9-bit short address for the source variable. Bit value X specifies the destination address range:

AddressRange

All predefined or user-defined TML data are inside these address ranges, hence these instructions can be used without checking the variables addresses. However, considering future developments, the TML also includes assignment instructions using a full address where the destination address can be any 16-bit value. In this case destination variable is followed by “,dm”.



ExecutionCopies a 16-bit value from a local source to a remote destination



Example1

int VarLoc, VarExt;

...

[15]VarExt, dm = VarLoc;



Before instruction



After instruction

VarLoc on local axis

0x1234



VarLoc on local axis

0x1234

VarExt on axis 15

x



VarExt on axis 15

0x1234



Example2        int VarLoc, pVarExt;

...

[G8](pVarExt), dm = VarLoc;



Before instruction



After instruction

VarLoc on local axis

0xFEDC



VarLoc on local axis

0xFEDC

pVarExt on all axes of group 8 is the same

0x1234



pVarExt on all axes of group 8 is the same

0x1234

At dm address 0x1234 on all axes of group 8

x



At dm address 0x1234 on all axes of group 8

0xFEDC



Example3

int VarLoc, pVarExt;

...

[G8](pVarExt+), dm = VarLoc;



Before instruction



After instruction

VarLoc on local axis

0xFEDC



VarLoc on local axis

0xFEDD

pVarExt on all axes of group 8 is the same

0x1234



pVarExt on all axes of group 8 is the same

0x1235

At dm address 0x1234 on all axes of group 8

x



At dm address 0x1234 on all axes of group 8

0xFEDC
